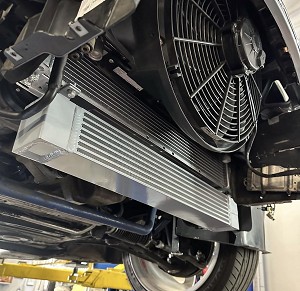

Oil cooler sold separately. Oil cooler model 8240 shown, compatible with E36 A/C lines.

Rogue Engineering/CSF E36 S54 SWAP Radiator

Your Price: $599.00

7211 and 8240 in stock!

Part Number:CSF.E36S54.7211

Include RE/CSF E46 M3 Oil Cooler?

OEM oil cooler lines

Quantity

Description
Customer Reviews

8/1 - Both 7211 and 8240 in stock for immediate shipping!

The BMW S54 engine is becoming increasingly more popular with other BMW swaps. One such swap is into the E36 chassis. Since the US market did not get the individual throttle body engines from Europe from 1995-99 (the S50B30 and S50B32), putting in the potent S54 is the revenge we all have been wanting to do.

To make things a little easier, we asked our partners at CSF to produce a special radiator for those of use tackling the swap. Whereas other OEM parts can be used during the project, we always want our available parts to last longer and perform better than OEM.

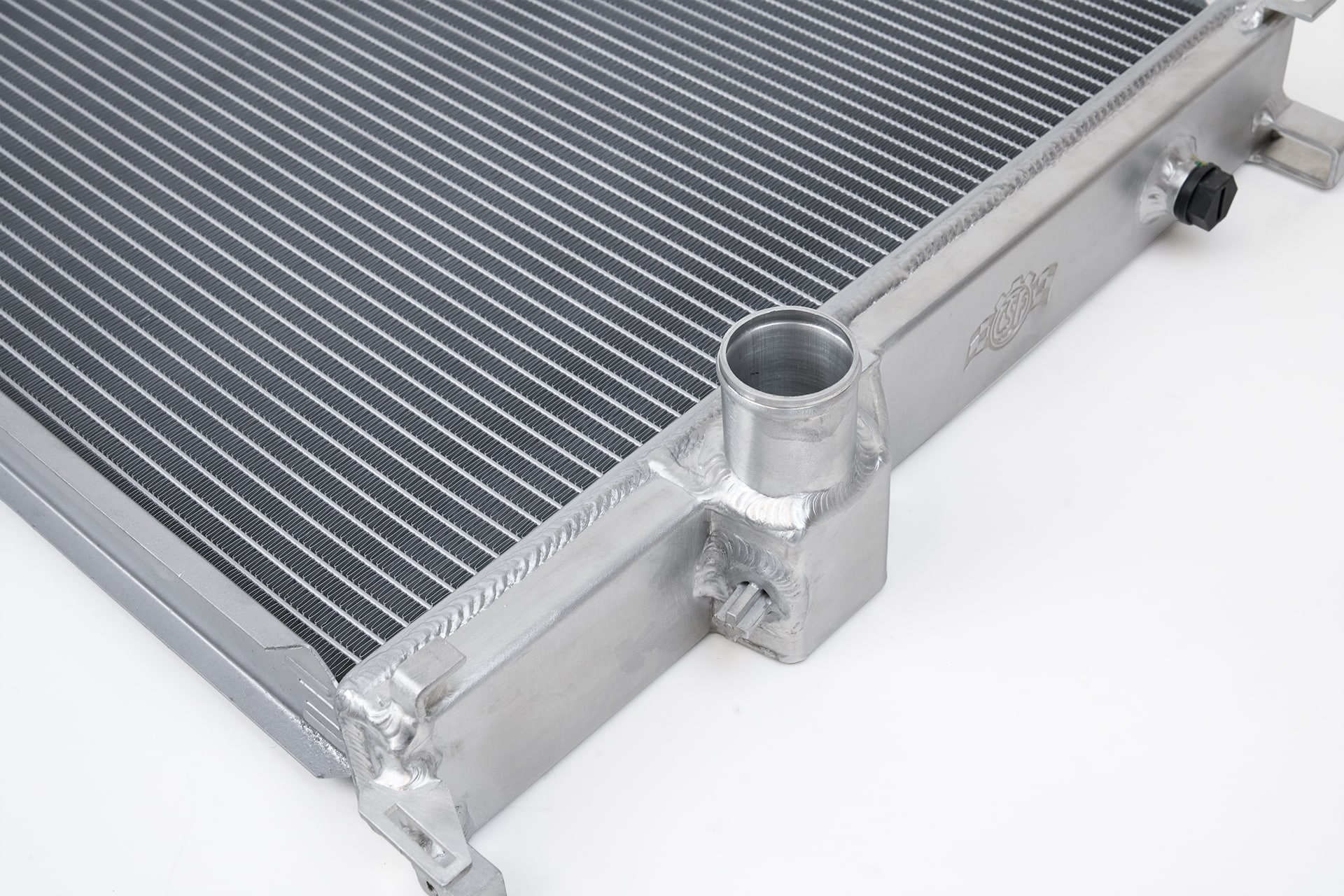

The RE/CSF Radiator

Many years ago when we collaborated with them to produce the now best-selling E46 M3 oil cooler, we started working on more and more ideas. Now we enjoy a partnership with CSF that allows us to create more unique products for enthusiasts like yourself.

CSF custom builds these E36 radiators specifically for Rogue Engineering and is designed specifically for E36s with S54 engines. Features over OEM radiators include;

2-Row – 42mm Ultra-High-Performance Core
CSF’s Exclusive B-Tube Technology
6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined Mounting Brackets, Fittings, and OEM Style Inlet/Outlet
100% All Aluminum TIG-Welded Construction
Smooth Satin Finish
All-Aluminum Race Style Drain Plug
Includes 2 top cover plates (black and satin) to cover the top of the radiator for a clean OEM+ look
Includes fan brackets for use of 16 inch SPAL Fan (SPAL #30100400 – not included)
Includes Oil Cooler Mounting Bracket for fitment of both the CSF #8240 (w/ A/C) & CSF #8032 (w/o A/C)
True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
Also works for BMW S50 & S52 Swaps for E36 Chassis
Individually Leak and Pressure Tested
2-Year Limited Warranty

These radiators are designed to fit into the factory mounting locations, but also allow for items such as electric fans to be mounted.

Oil Cooler and parts

Although the OEM oil cooler can be mounted, we always opt for a more robust solution. The RE/CSF E46 M3 oil cooler was designed to fit with this radiator, but any oil cooler with OE attachment should fit. An oil cooler duct is also recommended for maximum oil cooling efficiency, such as the OEM MZ3 version (BMW # 51 71 2 492 669) or fabricate one.

For those using A/C, use the CSF # 8240
